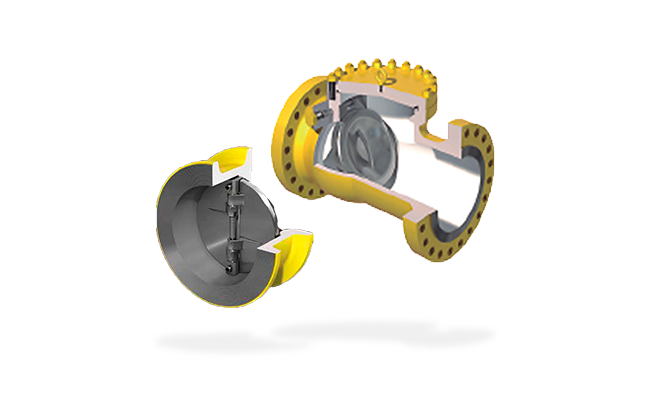

Valve de Retención - WHEATLEY
Description
The CAMERON WHEATLEY 500 Series Retention Valve is a carbon steel bronze end retention Valve, fire tested with a fully open, open duct design for low pressure drop and less turbulence.The flanges of the Valve have a back face. This is an additional manufacturing step that provides smoother screwing surfaces and even bolt loading.
The Valve CAMERON WHEATLEY, Series 500 is a Valve of Retention in carbon steel of flanged ends with tests of fire with total opening, design Trough-Conduit "Conduit complete with low fall of pressure and less turbulence.
The flanges of the Valve are face-backed and integrated to the body.
Designed in accordance with ASME B16.34. Fire tests according to API 6FD. Hermetic seal, suitable for vertical upwards or horizontal installation, repairable in terrain.
Valve Details:
Technical specifications
The Model 316 is compatible with a wide range of operating conditions and means
Fully open conduit design for low pressure drop and less turbulence.
Las Valves easily pass pigs and 90-durometer spheres, peroxide cured seals are compatible with a wide range of operating conditions and means
The seals provide a tight seal to the bubbles
Suitable for vertical flow up or horizontal installation
Reduce the installation guess
All materials comply with NACE MR0175 / ISO 15156
Molten flanges provide greater integrity of the Valve's body and fewer API 6D Monogram leak points (510/511 only)
Designed in accordance with ASME B16.34 (only 510/511) Fire test according to API 6FD requirements (excluding Valve 1 "[25 mm]
Canadian Registration Number (CRN) available upon request Screw-in top entry complete with 1/2 "(25 mm) NPT cap for pressure gauges and accessories (excluding Valve of 1" [25 mm])
Online repairs
The pallet shaft through the pin facilitates removal of the flap and prolongs the life of the Valve by transferring wear to a replaceable low cost part
